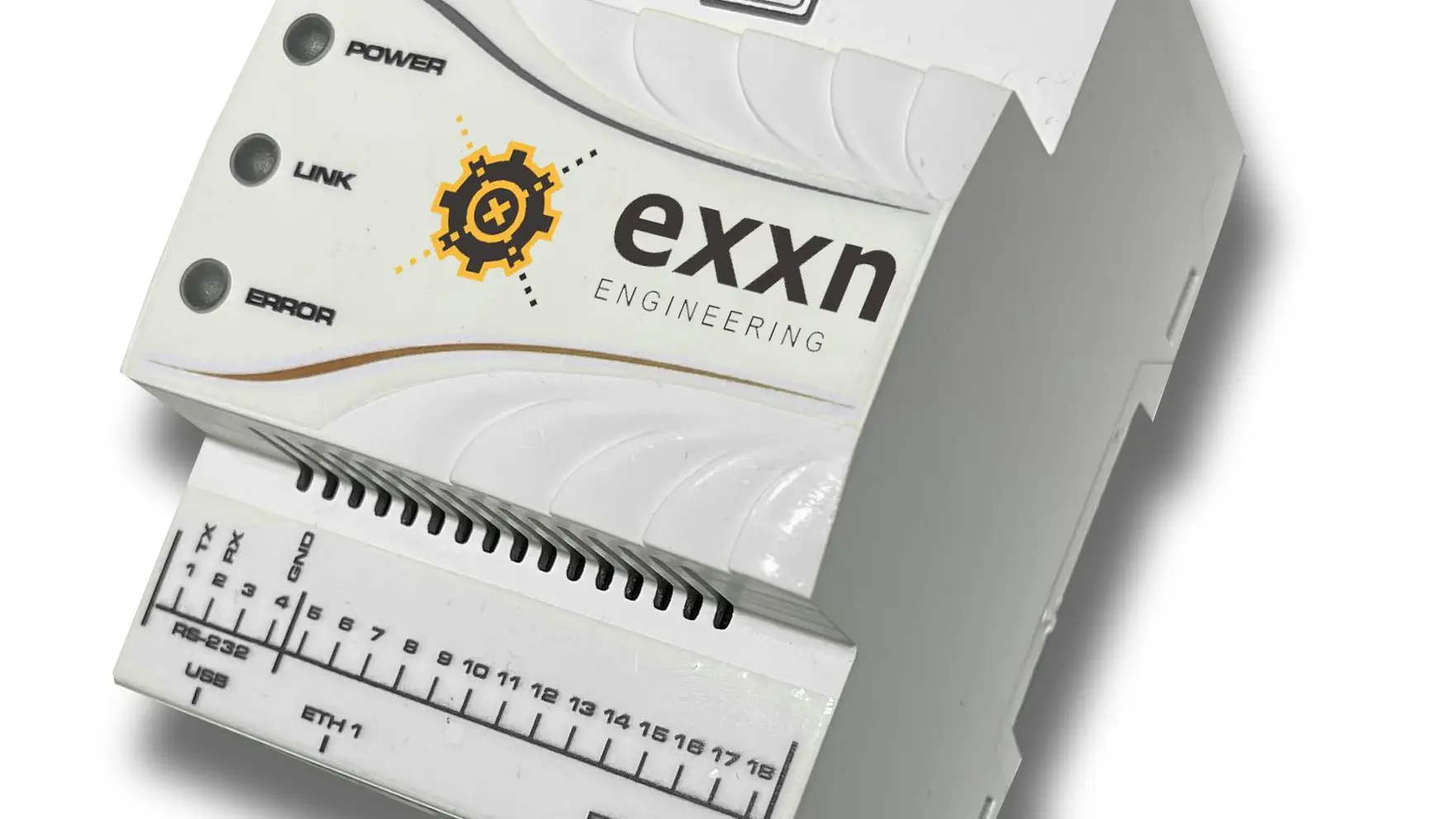

EXX1012
The DIN rail format data logger, designed and manufactured by EXXN, allows for the collection and transmission of real-time data through various networks such as CAT-M, NB_IoT, SIGFOX, LORA, 2.5G, 3G, 4G, and 5G. This device is compatible with sensors connected to its RS-232, RS-485, MicroWire, and GPIO ports. Equipped with a Hexacore processor (QuadCore A73 + DualCore A53), it provides exceptional EDGE processing capability, complemented by an NPU that offers up to 4.0 TOPS for AI applications. Additionally, it features a USB port and two GbE ports. Its power range is from 12 to 24VDC and integrates GNSS/GPS technology.
Features
- Dimensiones: 70x95x70mm
- Grado IP: 54, PCB tropicalizada
- Power Supply: extended range 9-24VDC
- Redundancy in feeding
- Power: < 25W in operation
- GNSS/GPS: incluido (con antena externa)
- Antena: Internal, SMA option for external antenna
- Silkscreen: customizable for the user
- RAM: hasta 4GB (personalizable)
- eMMC: 16GB (customizable)
- OS: EXXN.OS (customized linux)
- SIM: Punch-out (push/pull), eSIM
- WIFI integrado como cliente y AP: opcional
Applications
- Connection to heterogeneous sensors
- Telemetry report to IoT platform
- EDGE Computing, AI analysis
- Vision analysis
- Gangway embarked on vehicles

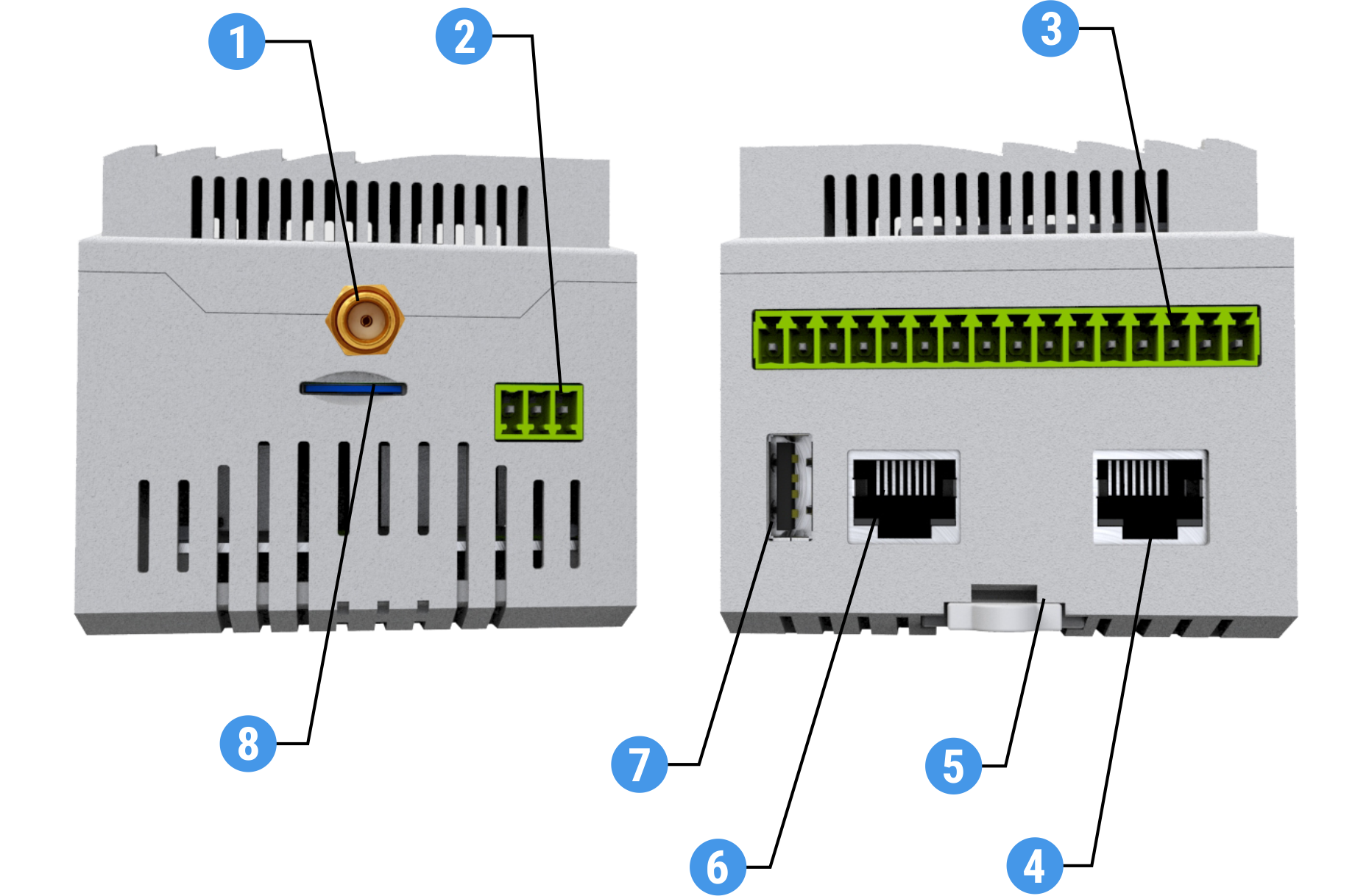

Legend:
1. 2/3/4/5G Antenna | 2. Power Supply 9-24V | 3. I/O Connector
4 y 6. GbE ports | 5. CarrilDIN clip | 7. USB 2.0 | 8. SIM
Download product sheet EXX1012
Related products:

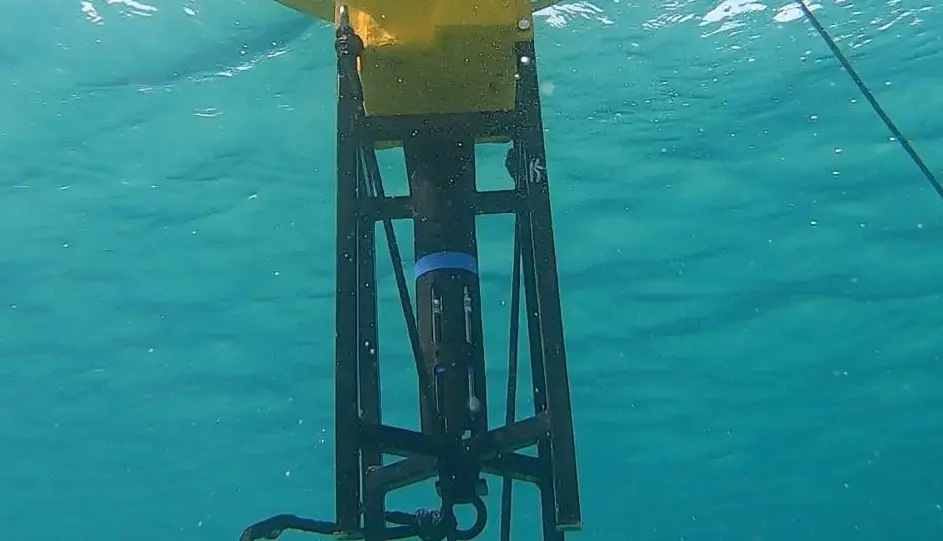

Multisensor MSA800
Configurable aquatic multisensor for monitoring up to 8 parameters

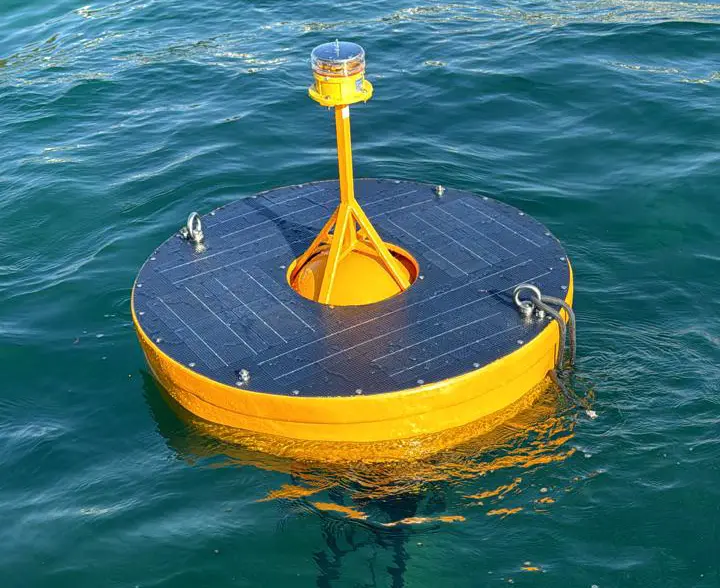

Boya BOX90
Discreet anchored buoy, powered by solar panel, flashlight, and high-capacity battery

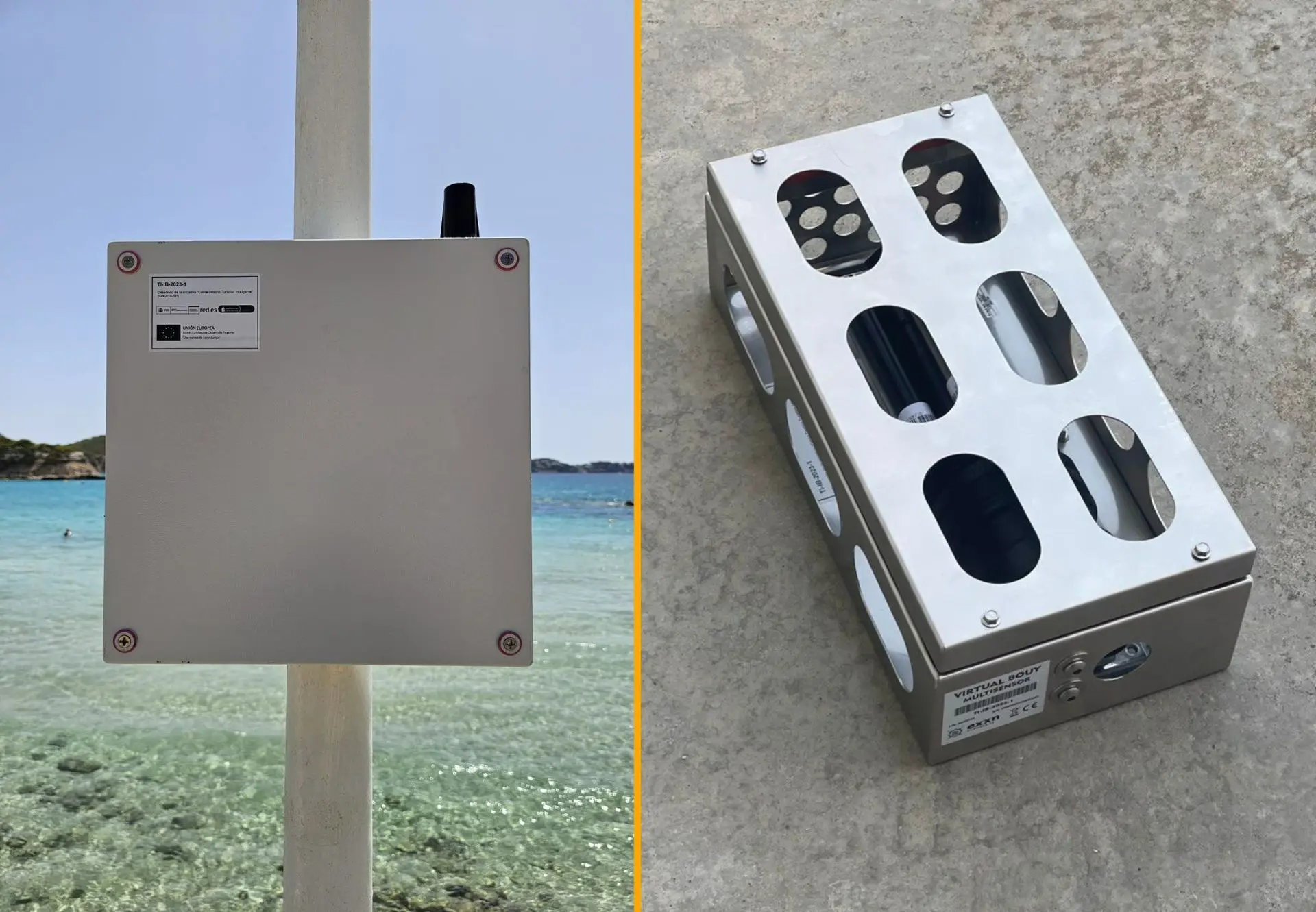

VBO40 Virtual Buoy
