BOY 90

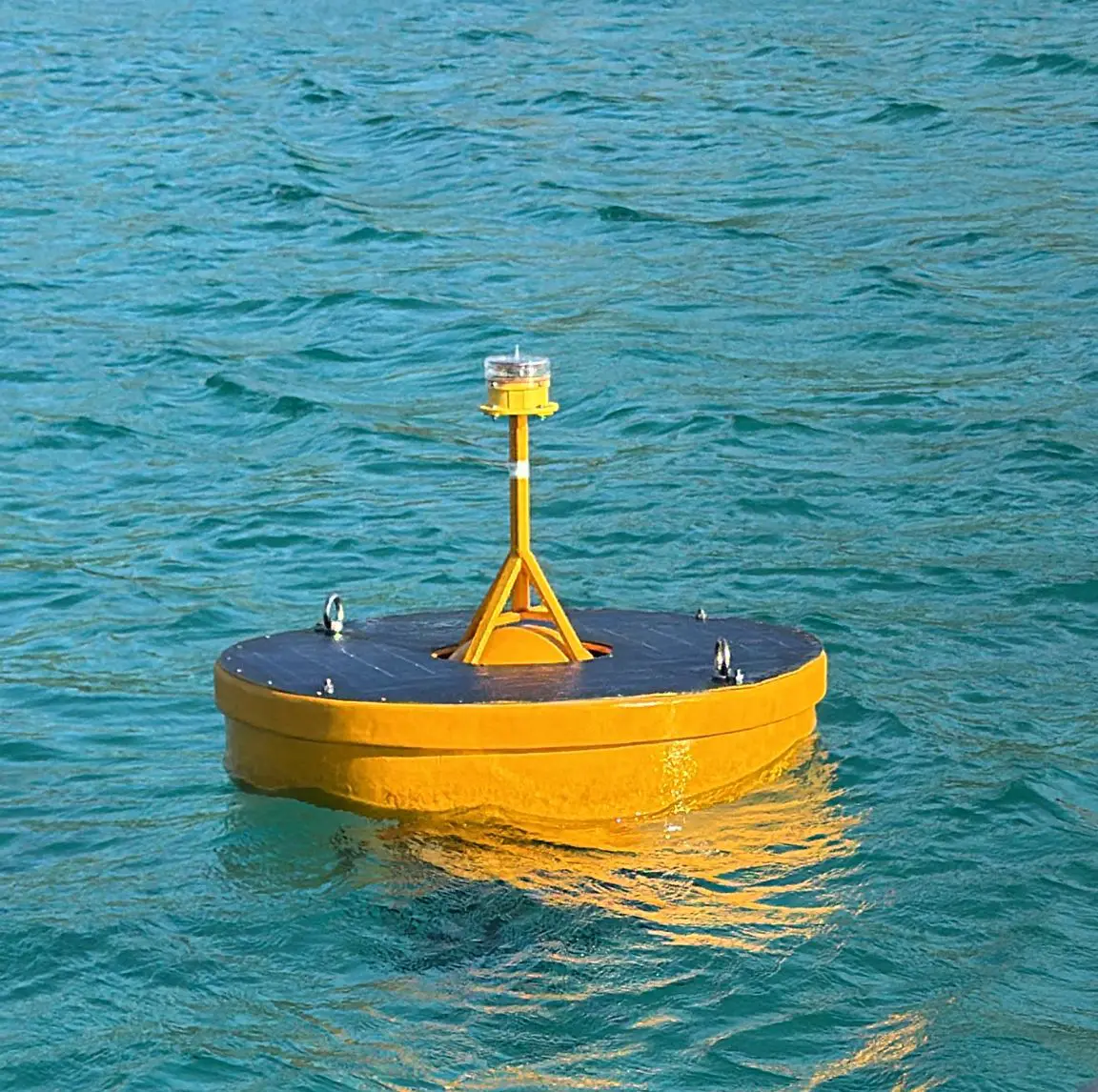

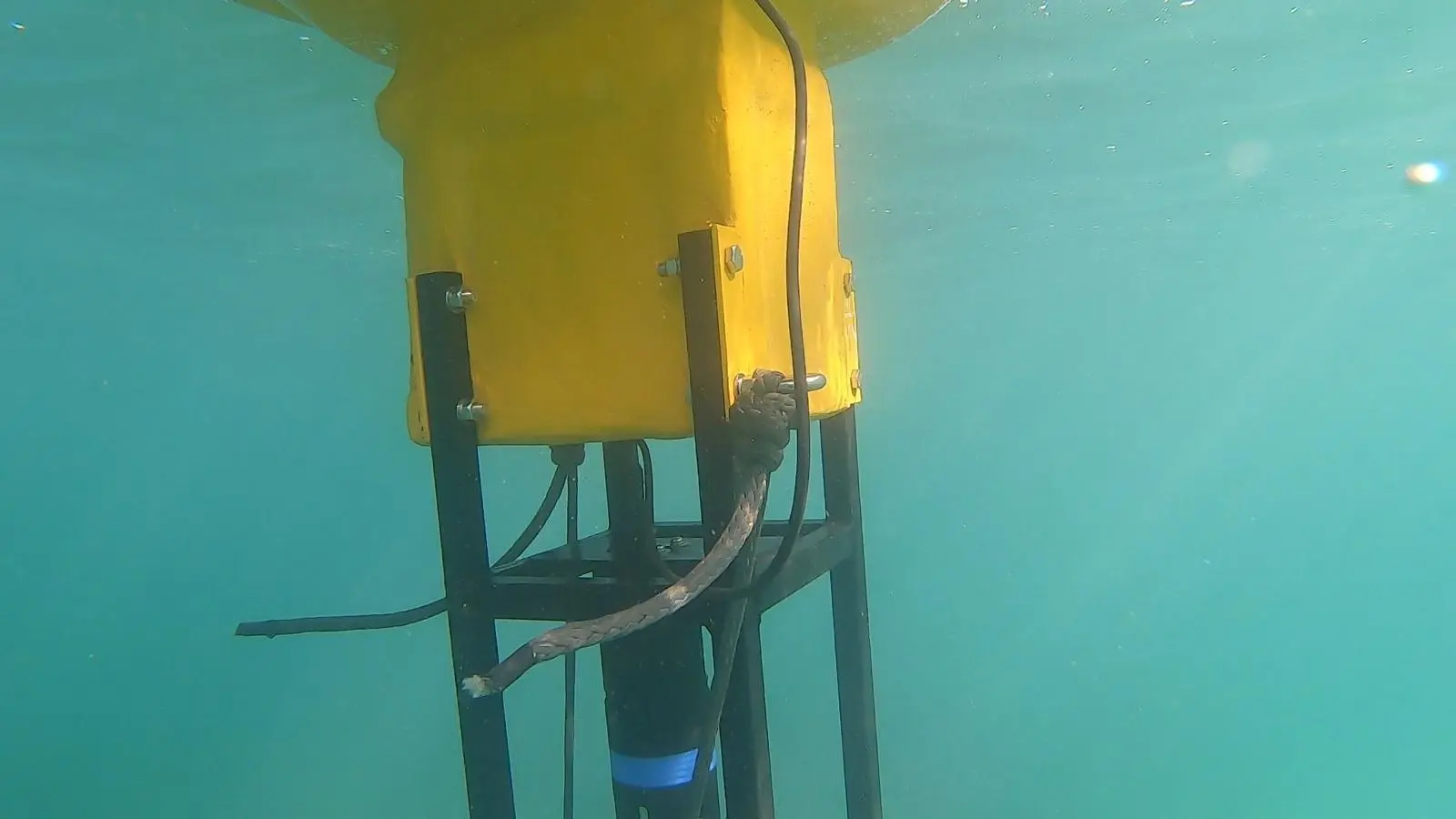

Discreet connected buoy with a diameter of 90cm, made of polyurethane, with high buoyancy, powered by a 45W solar panel and a 100Ah battery. It integrates a lantern on the mast that can be replaced by an atmospheric multisensor. It features a waterproof compartment for instrumentation and a GEL battery of up to 100Ah. It can be configured with an additional structure to house a high-resolution marine multisensor in the submerged area.
Features
- Dimensions: 90x90x83cm (excluding structures)
- Weight: 92Kg (excluding structures and masts)
- Material: Modified DMI (diphenylmethane diisocyanate)
- Relative density (25ºC): 1.22
- NCO% Content: 28-30
- Structure: marine stainless steel 316L
- IALA standard compatible
- Meets the requirements JT/T 761-2009
- Color according to GB12708-1991 and GB/T8417-2003
Applications
- Aquatic quality systems in lakes and seas
- Measurement of current flows and their direction
- Maritime security using cameras
- Aquaculture control in artificial lakes
- Scientific research for data collection
Download product sheet BOY90
